MEET THE BEAST
Introducing the
141" SABER® X-15 Plus Paper Cutter
One of the largest guillotine paper cutters on the market today, the SABER X-15 Plus features a computerized back gauge system, 5" maximum cut height, multiple air blower motors, and infrared safety eye beams.
Or Call 1.800.932.0780 x4
“We print a lot of card stock, coroplast and styrene for an endless list of items and run it all through the SABER”
Bill Bratton, Britten Studios
Auto Waste Removal
See the SABER Auto Waste Removal in action.
Auto Knife Adjustment
See the SABER Auto Knife Adjustment in action.
Why is a SABER X-15 Plus the best large format paper cutter on the market?
- Microcut Wide Screen (15”) computerized back gauge system featured on SABER paper cutters:
- Back gauge speed variable up to 16” per second
- Color touch screen
- CIP3/4 compatible
- Network ready
- Management information system (MIS) included
- 141” maximum cut length wide format cutter
- 141” maximum cut width wide format cutter
- 5” maximum cut height
- 9” minimum cut length
- Heavy duty 8” wide clamp
- Combination ball bearing lead screw and linear-bearing back gauge
- Stainless Steel/Chrome table surfaces with low pressure air jets
- Multiple air blower motors for low pressure air table
- Programmable from Microcut computer, a feature of the SABER cutter
- Clamp operated by heavy duty hydraulic cylinder under center of table
- Hydraulic oil cooling included
- Variable clamping force from 500 - 20,000 lbs
- Programmable from Microcut computer
- Variable knife speed to assist cutting various product types
- Knife operated by hydraulic cylinders located at each side of the knife beam below table level
- Knife change device using a central lifting unit in knife beam
- Knife height setting and leveling is fully automated from Microcut computer
- Foot treadle operation for soft clamping is coupled with infrared eye beam curtains for safety
- Energy efficient main motors operate only during cutting and clamping
- 480 volt, 3 phase, 60Hz, 40 amp power required
- Infrared safety eye beams
- Push button safety controls (3 operator stations)
- Meets all US machine safety standards, CSA, and CE safety requirements
- Two high-speed blades
- Twelve plastic cutting sticks
- Parallel or eccentric cut option

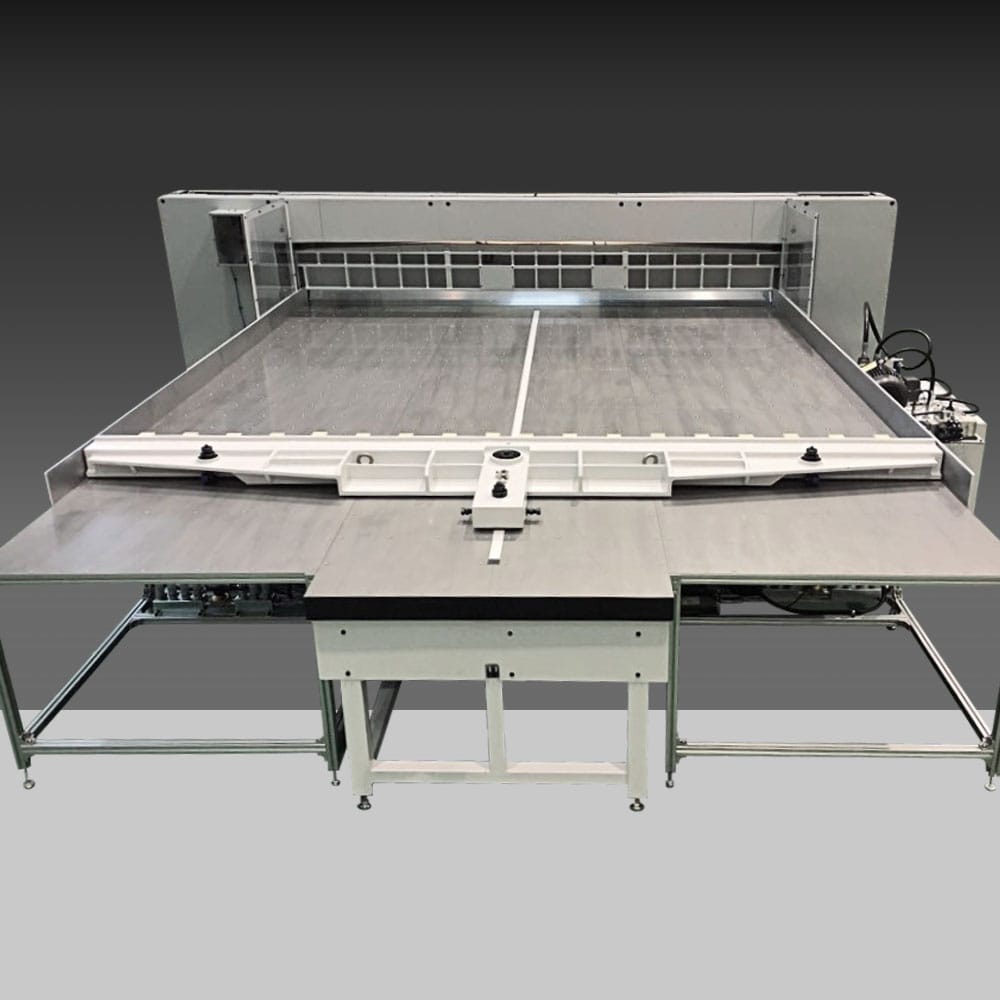

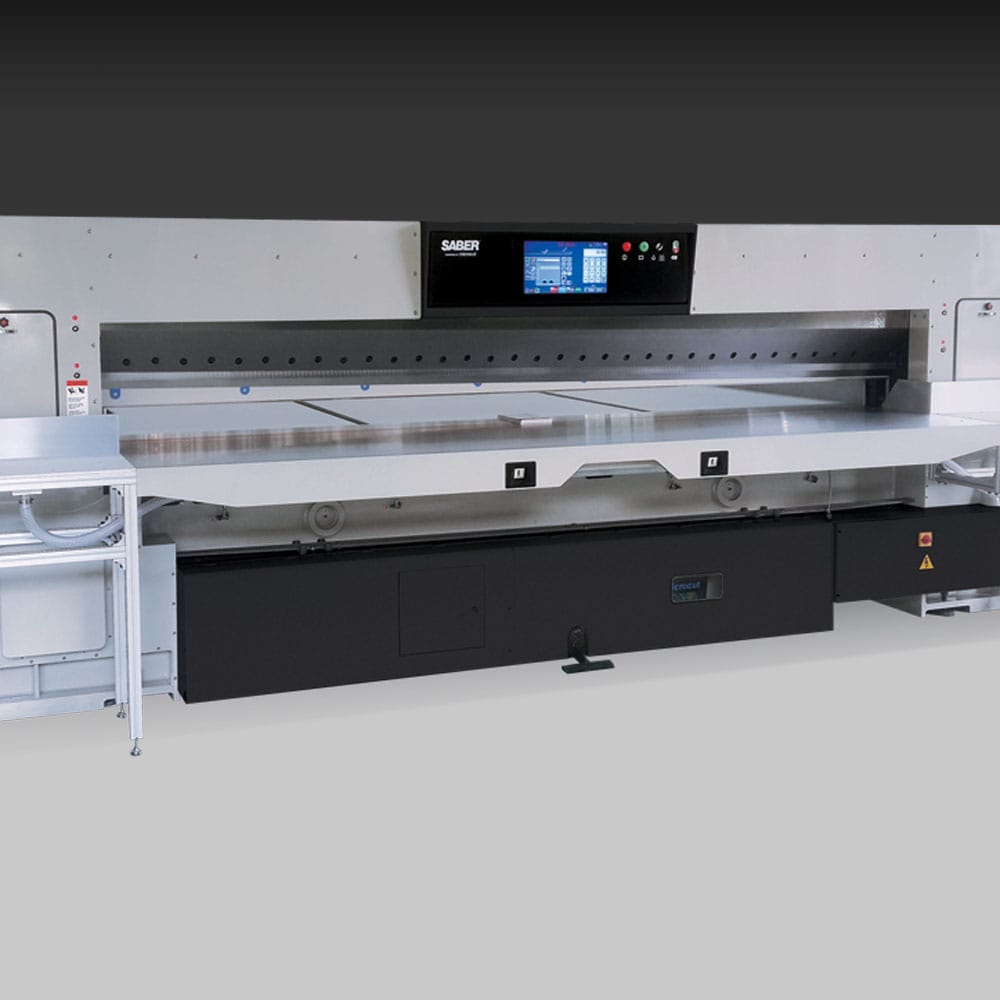

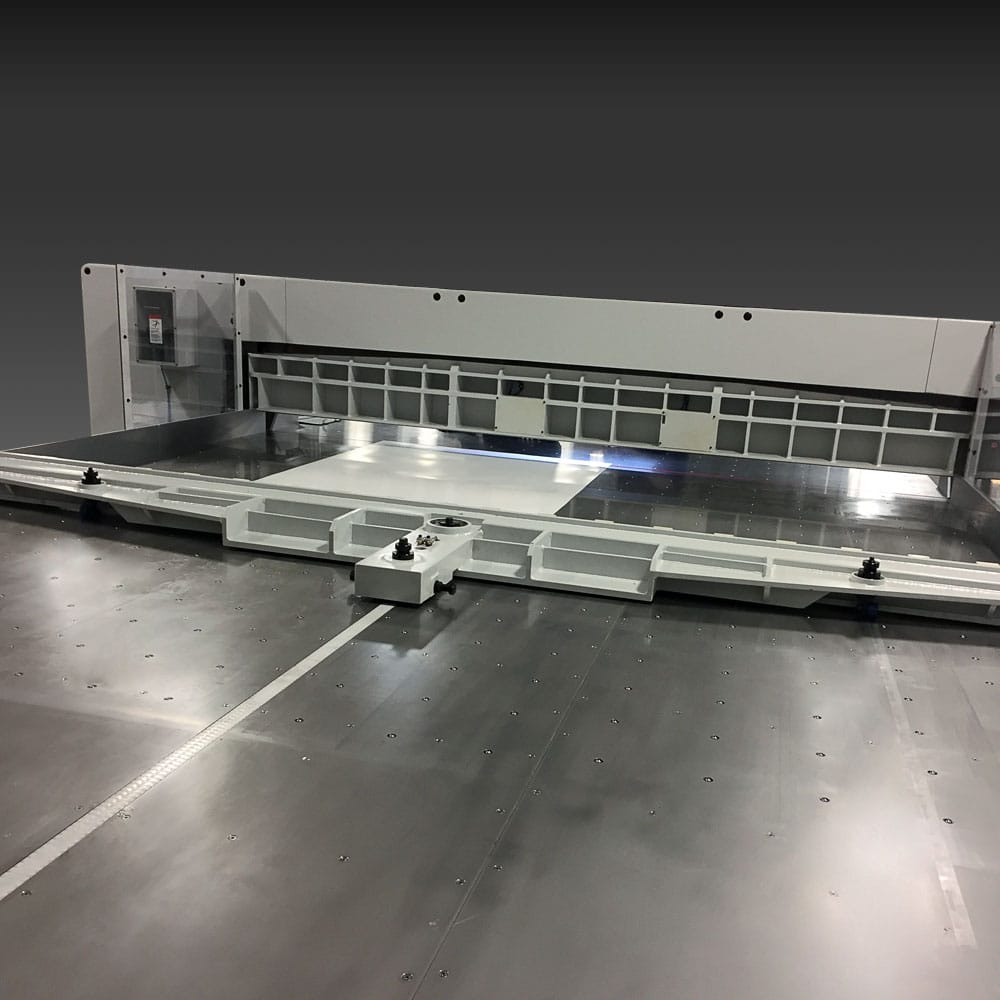

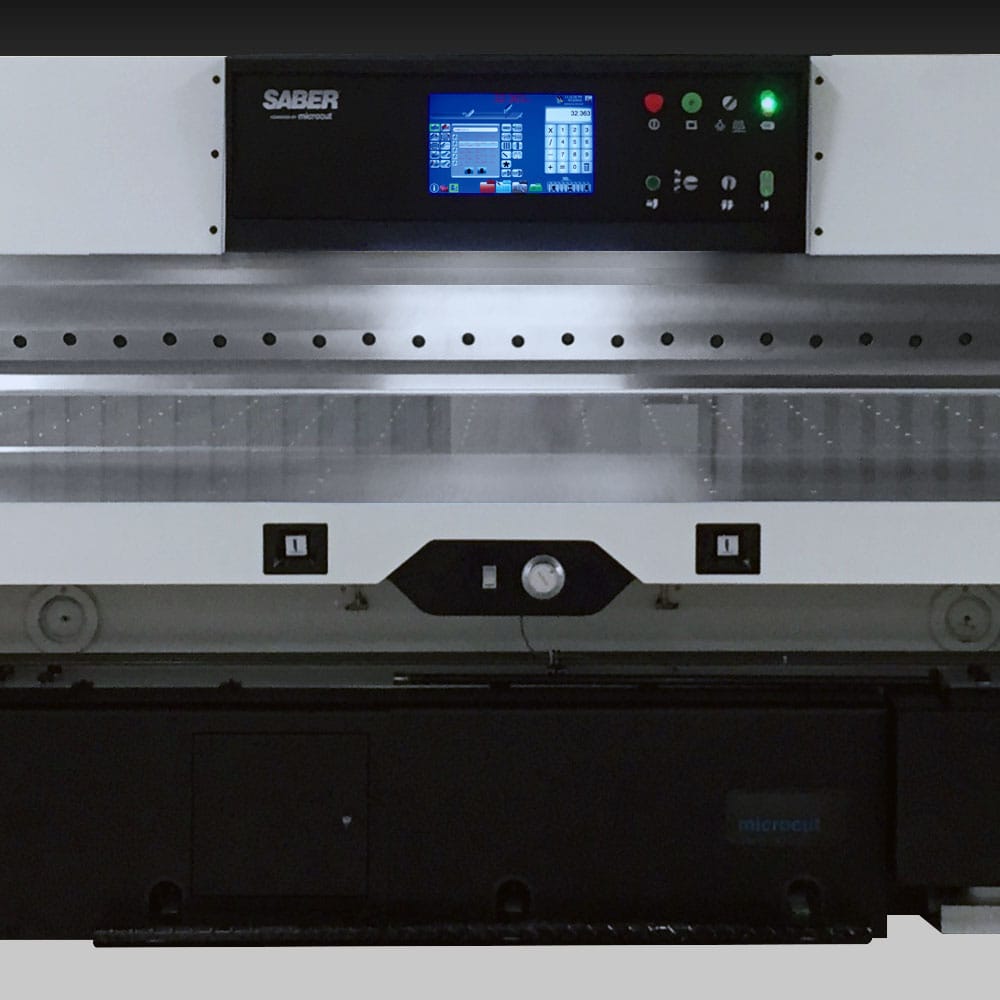

SABER X-15 Plus Gallery
Click photo to enlarge
SABER X-15 Plus Specifications
Note: Specifications subject to change without notice
